CRF20LA HWD

Product Details

Manufacturer part number:
CRF20LA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Self-Grounding Standard Traditional Screw Mount

Description

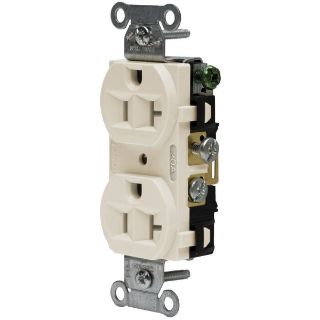

Wiring Device-Kellems Straight Blade Receptacle, Duplex Isolated Ground Smooth Face Standard Traditional, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Light Almond, 4.06 in H x 1.38 in W x 0.92 in D Dimensions

Application

For indoor dry environments

Standards

CSA File No. LR16215/Guide No. 365E1 | NEMA WD1/ WD5 | NOM Certified | UL 498 | UL94 V-2 File No. E2258 Guide No. RTRT

Features

  • Easy access split circuit tab
  • Fork terminal capable
  • Rounded face, wraparound design is molded of high impact, chemical resistant nylon
  • Heavy duty wraparound steel yoke
  • Terminal screws brass combination Phillips/slotted/Robertson binding head accepts up to 10 AWG wire
  • Back wiring - eight wiring pockets for convenient feed-thru wiring, clamp type terminals accepts up to 10 AWG wire
  • Large green, combination Phillips/slotted/Robertson hex head backed out and staked for easy wiring
  • Easily accessible break-off tab for 2-circuit wiring
  • Self-grounding strap for quick installation
  • One piece triple wipe brass line contacts
  • Double wipe brass grounding contacts

Specifications

Amperage Rating:20 A
Color:Light Almond
Country of Origin:CN
Dimensions:1.32 x 1.06 x 3.28 in
Grade:Commercial/Specification
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
