Actual Product May Vary From Image

CS115I HWD

Name: CS115I HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CS115I HWD
Price: 3.26 USD
Availability: OutOfStock

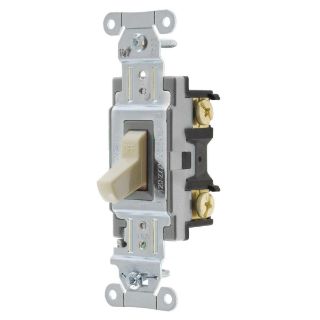

Wiring Device-Kellems CS115I Specification Grade Standard AC Toggle Switch, 120/277 VAC, 15 A, 2 hp, 4155 W Power Rating, 2-Position Contact

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: CS115I

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3.26

This product has a minimum quantity of 10

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Specification Grade Standard

Alternate Supplier #

Grainger - 6A672

Description

Wiring Device-Kellems AC Toggle Switch, Specification Grade Standard, 120/277 VAC, 15 A, 2 hp, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, Ivory, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.18 in H x 1.49 in W x 1.75 in D Dimensions

Application

Commercial and General Purpose Applications

Standards

RoHS Compliant | CSA Certified | UL 20 | UL94 V-2 Flammability Rating | NEMA WD1

Features

Abuse resistant nylon toggle
Steel, zinc plated bridge is corrosion resistant
Thread cleaning captive mounting screw

Specifications

Actuator:	Toggle
Amperage Rating:	15 A
Color:	Ivory
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:	-40 to 75 deg C
Material:	Nylon
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	2 hp, 4155 W
Terminal Type:	Side Wire
Voltage Rating:	120 to 277 VAC
