CS320 HWD

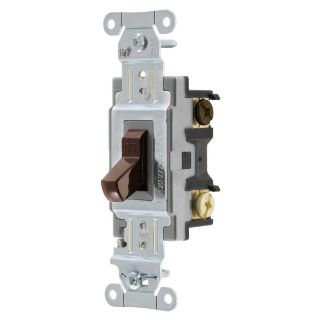

Picture of CS320 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
CS320
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5.36 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Way General Purpose Standard

Alternate Supplier #

Grainger - 1XC10
Fastenal - 0732871

Description

Wiring Device-Kellems Toggle Switch, 3-Way General Purpose Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Brown, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in

Application

Commercial and General Purpose Applications

Standards

RoHS Compliant | CSA Certified | UL94 V-2 Flammability Rating | UL 20

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
  • 14 to 10 AWG wire size
  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
  • Nylon toggle
  • Positive snap action

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Brown
Contact Configuration:2-Position
Country of Origin:CN
Dimensions:4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:-40 to 75 deg C
Material:Nylon
Mounting:Threaded
Number of Poles:1
Operating Cycles:50000 Cycles
Power Rating:2 hp, 5540 W
Terminal Type:Side Wire
Voltage Rating:120 to 277 VAC
