CSB120I HWD

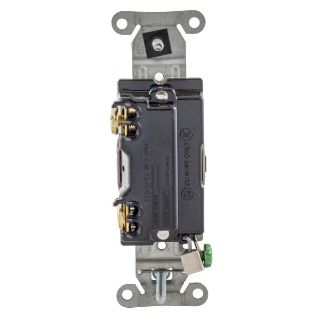

Picture of CSB120I HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
CSB120I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4.79 / EA
This product has a minimum quantity of 10

Description

Brand Name

Wiring Device-Kellems

Type

2-Position Standard

Alternate Supplier #

Grainger - 49YL39
Fastenal - 0732929

Description

Wiring Device-Kellems Toggle Switch, 2-Position Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in

Application

Commercial Applications

Standards

CSA Certified | Federal Specification W-S-896 | NEMA WD1 | UL Listed

Features

  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
  • 2 position
  • Indoor Dry unless protected by additional means
  • Specification grade
  • 14 - 10 AWG
  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
  • Nylon toggle
  • UL 94-V2 flammability
  • Back and side wire connection
  • 5540 W power
  • Positive snap action
  • General purpose

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Ivory
Contact Configuration:2-Position
Country of Origin:CN
Dimensions:4.18 in H x 1.49 in W x 1.75 in D
Environmental Conditions:-40 to 75 deg C
Material:Nylon
Mounting:Threaded
Number of Poles:1
Operating Cycles:50000 cycles
Power Rating:1/2 hp
Terminal Type:Back/Side Wire
Voltage Rating:120 to 277 VAC
