Actual Product May Vary From Image

CSB315I HWD

Name: CSB315I HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CSB315I HWD
Price: 5.36 USD
Availability: InStock

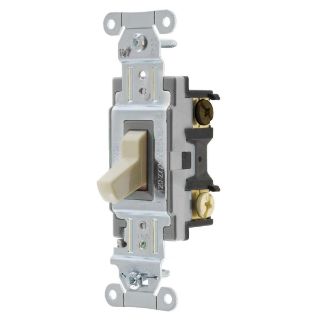

Wiring Device-Kellems CSB315I 3-Way Specification Grade Standard AC Toggle Switch, 120 to 277 VAC, 15 A, 4155 W Power Rating, 2-Position Contact

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: CSB315I

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5.36

This product has a minimum quantity of 10

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position 3-Way Commercial/Specification Grade General Purpose Standard

Alternate Supplier #

Grainger - 49YL50
Grainger - 49YL50

Description

Wiring Device-Kellems AC Toggle Switch, 3-Way Specification Grade Standard, 120 to 277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1 Enclosure, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in

Application

Commercial and General Purpose Applications

Standards

Federal Specification WS896 | UL 20 | CSA Certified | NEMA WD1

Features

Thread cleaning captive mounting screw
Abuse resistant nylon toggle
Steel, zinc plated bridge is corrosion resistant

Specifications

Actuator:	Toggle
Amperage Rating:	15 A
Color:	Ivory
Contact Configuration:	2-Position
Country of Origin:	CN
Dimensions:	4.18 in H x 1.49 in W x 1.83 in D
Enclosure:	NEMA WD-1
Environmental Conditions:	-40 to 75 deg C
Material:	Nylon
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 cycles
Power Rating:	4155 W
Series:	CSB
Terminal Type:	Back/Side Wire
Voltage Rating:	120 to 277 VAC
