CSEB22455H LBB

Name: CSEB22455H LBB
Brand: Rexnord
SKU: CSEB22455H LBB
Price: 1,938.32 USD
Availability: OutOfStock

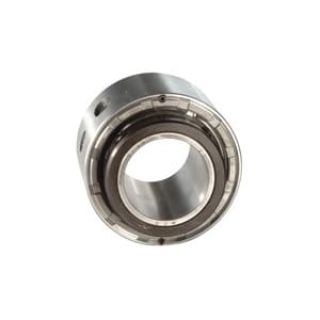

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

CSEB22455H

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1,938.32 / EA

Description

Brand Name

Link-Belt®

Type

Fixed Mounted

Description

Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Cartridge Block Spherical Roller Bearing, Fixed Mounted, Series: B22400, 3-7/16 in Bore Dia, 6.194 in Outside Dia, 2 Rows, 4-3/8 in Width, 62300 lb Dynamic/90700 lb Static, 1650 rpm Maximum, -40 to 400 deg F, Uncoated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 11

Features

Spring locking collar locks inner ring securely to shaft
Clearance seal
Long inner ring for high stability and load support
Self aligning double row
Double contoured retainer pockets
Misalignment capabilities total of 4 deg
Factory set clearance and lubrication
Cast steel cartridge block

Specifications

Bore Diameter:	3-7/16 in
Finish:	Uncoated
Load Capacity:	62300 lb Dynamic/90700 lb Static
Maximum Speed:	1650 rpm
Number of Rows:	2
Outside Diameter:	6.194 in
Series:	B22400
Temperature Rating:	-40 to 400 deg F
Width:	4-3/8 in
