CSSEWDM3554 BLD

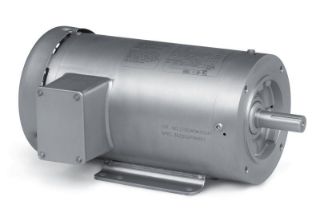

Picture of CSSEWDM3554 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CSSEWDM3554
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Washdown All Stainless

Features

1.5HP,1765RPM,3PH,60HZ,56C,3533M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:2.2 A; 4.3 A
Horsepower:1.500 hp
Insulation Class:H
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:88.50%
Phase:Three Phase
Power Factor:74
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
1 1/2 HP
Speed Rating
1800 RPM
Type
Stainless Wash Down Motor
Voltage Rating
230/460
