CSSEWDM3709T BLD

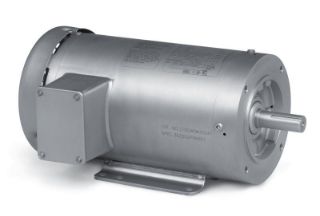

Picture of CSSEWDM3709T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CSSEWDM3709T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Washdown All Stainless

Features

7.5HP,3500RPM,3PH,60HZ,213TC,3735M,TEFC

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:213
Frequency Rating:60 Hz
Full Load Current:19.9 A; 16.8 A; 8.3 A
Horsepower:7.500 hp
Insulation Class:H
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:91.00%
Phase:Three Phase
Power Factor:93
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,500 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
213TC
Frequency Rating
60 Hz
Horsepower
7 1/2 HP
Speed Rating
3600 RPM
Type
Stainless Wash Down Motor
Voltage Rating
208-230/460
