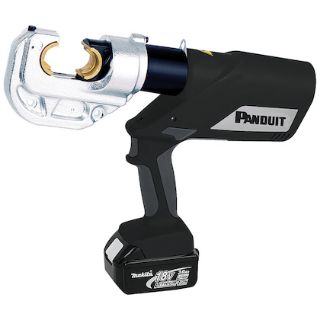

CT-2931/STAUS PAN

Name: CT-2931/STAUS PAN
Brand: Panduit
SKU: CT-2931/STAUS PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

CT-2931/STAUS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Battery Powered Hydraulic Die Type

Description

Panduit® BlackFin® Crimping Tool Kit, Battery Powered Hydraulic Die Type, Kit, Series: CT-2931, Crimping Capacity: 8 AWG to 750 kcmil Cu, 6 AWG to 600 kcmil Al, 108 kN Crimping Force, 230 VAC, Lithium-Ion Battery, 3 Ah Battery, Plastic Housing, Pistol Grip/Soft Rubber Inlay Comfort Grip, Electronic ARS Control, 16.2 in Overall Length, 12.6 in H x 3 in W

Application

For crimping copper and aluminum compression connectors

Standards

Features

Electronic control and monitoring of crimping operation
Integrated pressure measurement with visual and audible signals in case of error
Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit® website
Open C head design with 1.65 in opening, rotates 350 deg
Ergonomic handle positioned at center of gravity for easy handling
Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation
One-button operating concept for controlling all tool functions
LED worklight for workplace illumination
2-stage hydraulic system with rapid advance and power stroke, 8-9 sec crimp cycle
Energy saving function with motor cut-out (auto-stop
Quick motor stop for high user safety
Automatic retraction when crimping is complete
Manual retract manually sets piston stop
Automatic position control (ARS) sets piston stop for multiple crimping operations
Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software
Environmentally-friendly hydraulic oil, biodegradable
Can be operated as a corded tool using Panduit® A/C adapters
8 AWG to 750 kcmil copper, 6 AWG to 600 kcmil aluminum, 8 AWG to 535 kcmil flex

Includes

(2) Makita 18 VDC 3 Ah Lithium-Ion Battery, (1) 230 VAC Charger with AUS Type I Plug, (1) Carrying Case and (1) Shoulder Strap

Specifications

Bare Tool/Kit:	Kit
Battery Capacity:	3 Ah
Battery Type:	Lithium-Ion
Control Type:	Electronic ARS
Country of Origin:	DE
Crimping Capacity:	600 kcmil Al, 8 AWG to 750 kcmil Cu
Crimping Force:	108 kN
Dimensions:	12.6 in H x 3 in W
Handle Type:	Comfort Grip
Housing Material:	Plastic
Overall Length:	16.2 in
Series:	CT-2931
Voltage Rating:	230 VAC
