CU339 LBB

Name: CU339 LBB
Brand: Rexnord
SKU: CU339 LBB
Price: 1,109.90 USD
Availability: OutOfStock

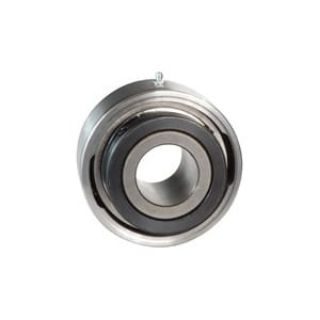

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

CU339

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1,109.90 / EA

Description

Brand Name

Link-Belt®

Type

Fixed Heavy Duty Mounted

Description

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.

Link-Belt® Cartridge Block Ball Bearing, Fixed Heavy Duty Mounted, Series: 300, 2-7/16 in Bore Dia, 5.781 in Outside Dia, 3-5/16 in Width, 18390 lb Dynamic/11700 lb Static, Alloy Steel Bearing, 4450 rpm Maximum, 225 deg F, Uncoated

Application

Aggregates, Air Handling, Forestry, Mining, Steel and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Provides a cool running, quiet, high-speed and high-load capacity bearing
Spyglass Optical Strain Sensor (OSS) technology
Positive locking system minimizes vibration
Case carburized inner ring resists fracture under shock and heavy loads
Tapered adapter assembly
Bearing sealed unit, relubricatable
Setscrew locking device
Clearance seal
Formed steel fixed cartridge block

Specifications

Bearing Material:	Alloy Steel
Bore Diameter:	2-7/16 in
Finish:	Uncoated
Load Capacity:	18390 lb Dynamic/11700 lb Static
Maximum Speed:	4450 rpm
Outside Diameter:	5.781 in
Series:	300
Temperature Rating:	225 deg F
Width:	3-5/16 in
