CWDM3539 BLD

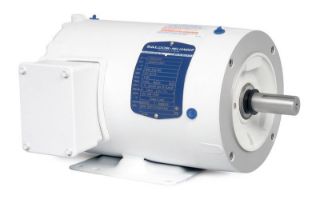

Picture of CWDM3539 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CWDM3539
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,158.21 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down

Features

.5HP,1165RPM,3PH,60HZ,56C,3522M,TENV,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.9 A; 1.0 A
Horsepower:0.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:78.50%
Phase:Three Phase
Power Factor:6
Rotation:Reversible
Service Factor:1.25
Speed Rating:1,165 rpm
Voltage Rating:230 V; 208 V; 460 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TENV
Frame
56C
Frequency Rating
60 Hz
Horsepower
1/2 HP
Speed Rating
1200 RPM
Type
Wash Down Motor
Voltage Rating
208-230/460
