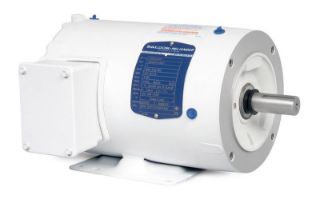

Actual Product May Vary From Image

CWDM3542 BLD

Name: CWDM3542 BLD
Brand: Baldor Reliance
SKU: CWDM3542 BLD
Price: 896.12 USD
Availability: OutOfStock

.75HP,1750RPM,3PH,60HZ,56C,3514M,TENV,F1

Manufacturer: Baldor Reliance

Manufacturer part number: CWDM3542

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$896.12

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Full Load Current: 2.8/1.4 AMP; Service Factor: 1.25; Frame: 56C; Horsepower: 0.75 HP; Speed Rating: 1750 RPM; Frequency Rating: 60 HZ; Torque Rating: 2.26 LB-FT Full Load, 11.5 LB-FT Br

Application

Wash Down

Features

.75HP,1750RPM,3PH,60HZ,56C,3514M,TENV,F1

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TENV
Frame:	56
Frequency Rating:	60 Hz
Full Load Current:	1.4 A; 2.8 A
Horsepower:	0.750 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	78.50%
Phase:	Three Phase
Power Factor:	66
Rotation:	Reversible
Service Factor:	1.25
Speed Rating:	1,750 rpm
Voltage Rating:	460 V; 230 V
