CX225-56HK-QY PAN

Name: CX225-56HK-QY PAN
Brand: Panduit
SKU: CX225-56HK-QY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

CX225-56HK-QY

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type CX

Description

Panduit® offers a broad variety of mechanical lugs, splices, and split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug Mechanical Connectors provide quality performance, ease of installation, and lowest installed cost.

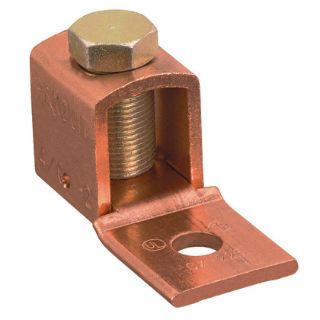

Panduit®, CX225-56HK-QY, Copper Mechanical Terminal Lug, Type CX, Series: CX Series, Stranded Copper Conductor, 2 to 4/0 AWG Conductor, 5/16 in Stud, 1 Bolt Holes, 1.06 in L x 0.99 in W x 0.11 in THK Tongue, 1-Barrel Straight Fixed Tongue, 600 VAC, Specifications: 3/16 in Hex Size, 225 A Current Rating, 90 deg C, Tin Plated, 2.19 in L x 0.99 in W x 1.13 in H Dimensions

Application

For stranded copper conductors

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant

Features

Made from high-strength electrolytic copper with steel screw to provide premium electrical and mechanical performance
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel set screw provides high strength, durable electrical contact between conductor and connector
Compact design saves space
1 stud of 5/16 in
25/pack
Range taking, high strength copper

Specifications

Conductor Size:	2 to 4/0 AWG
Conductor Type:	Stranded Copper
Country of Origin:	IN
Dimensions:	2.19 in L x 0.99 in W x 1.13 in H
Finish:	Tin Plated
Material:	Copper
Number of Bolt Holes:	1
Series:	CX Series
Specifications:	3/16 in Hex Size, 225 A Current Rating
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	1.06 in L x 0.99 in W x 0.11 in THK
Tongue Type:	1-Barrel Straight Fixed
Voltage Rating:	600 VAC
