CXSJM6-20 SMC

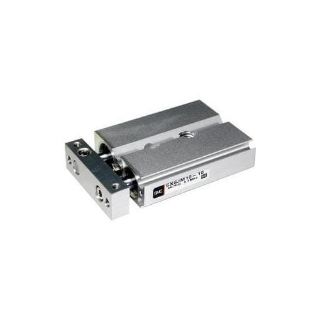

Picture of CXSJM6-20 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
CXSJM6-20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$76.95 / EA

Description

Brand Name

SMC®

Type

Compact

Description

SMC®, CXSJM6-20, Dual Piston Rods, Compact, Series: CXSJ, 6 mm Cylinder Bore, 20 mm Stroke Length, 39.2 N Push, 21.7 N Pull Maximum Force, Double Acting Cylinder Action, M3 x 0.5 Port, 4 mm Rod Diameter, 0.1 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 32 mm H x 13.4 mm W x 62 mm L Dimensions

Application

Allows for smooth operation that ensures stable travel resistance

Standards

RoHS Compliant

Features

  • Non-rotating accuracy ± 0.1 deg
  • Stroke lengths up to 100mm
  • Auto switch capable

Specifications

Country of Origin:US
Cushion Type:Rubber
Cylinder Action:Double Acting
Cylinder Bore Size:6 mm
Dimensions:32 mm H x 13.4 mm W x 62 mm L
Maximum Force:39.2 N Push, 21.7 N Pull
Mounting Type:Direct
Port Size:M3 x 0.5
Pressure Rating:0.1 to 0.7 mpa
Rod Diameter:4 mm
Series:CXSJ
Stroke Length:20 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
6 mm
Brand Name
SMC
Stroke
20 mm
