CXSL25-50 SMC

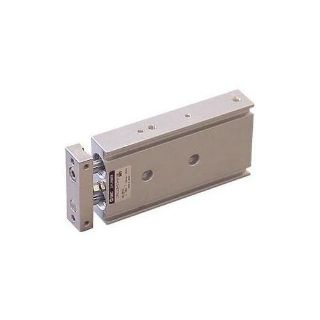

Picture of CXSL25-50 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
CXSL25-50
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$151.50 / EA

Description

Brand Name

SMC®

Description

SMC®, CXSL25-50, Dual Piston Rods, Series: CXSL, 25 mm Cylinder Bore, 50 mm Stroke Length, 687 N Push, 529 N Pull Maximum Force, Double Acting Cylinder Action, 1/8 in BSPT Port, 12 mm Rod Diameter, 0.05 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 80 mm H x 30 mm W x 146 mm L Dimensions

Application

Allows for smooth operation that ensures stable travel resistance

Standards

RoHS Compliant

Features

  • Non-rotating accuracy ± 0.1 deg
  • Stroke adjustment range from 0 to 5 mm
  • Auto switch capable

Specifications

Country of Origin:US
Cushion Type:Rubber
Cylinder Action:Double Acting
Cylinder Bore Size:25 mm
Dimensions:80 mm H x 30 mm W x 146 mm L
Maximum Force:687 N Push, 529 N Pull
Mounting Type:Direct
Port Size:1/8 in BSPT
Pressure Rating:0.05 to 0.7 mpa
Rod Diameter:12 mm
Series:CXSL
Stroke Length:50 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
25 mm
Brand Name
SMC
Stroke
50 mm
