CXSM10-60 SMC

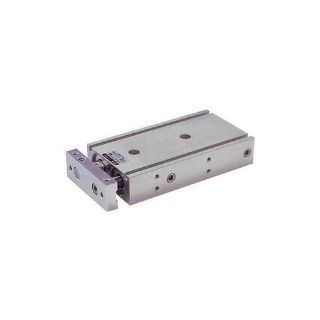

Picture of CXSM10-60 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
CXSM10-60
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$89.85 / EA

Description

Brand Name

SMC®

Type

Slide Bearing

Description

SMC®, CXSM10-60, Cylinder, Slide Bearing, Series: CXS, 10 mm Cylinder Bore, 60 mm Stroke Length, 110 N Maximum Force, Double Acting Cylinder Action, M5 x 0.8 Port, 0.1 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 17 mm in H x 46 mm in W x 132 mm in D Dimensions

Standards

RoHS Compliant

Features

  • Non-rotating accuracy ± 0.1 deg
  • Stroke adjustment range from 0 to 5 mm
  • Auto switch capable

Specifications

Country of Origin:US
Cushion Type:Rubber
Cylinder Action:Double Acting
Cylinder Bore Size:10 mm
Dimensions:17 mm in H x 46 mm in W x 132 mm in D
Maximum Force:110 N
Mounting Type:Direct
Port Size:M5 x 0.8
Pressure Rating:0.1 to 0.7 mpa
Series:CXS
Stroke Length:60 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
10 mm
Brand Name
SMC
Stroke
60 mm
