CXSM15-15 SMC

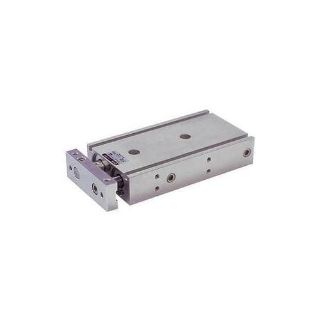

Picture of CXSM15-15 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
CXSM15-15
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$87.25 / EA

Description

Brand Name

SMC®

Type

Slide Bearing

Description

SMC®, CXSM15-15, Cylinder, Slide Bearing, Series: CXS, 15 mm Cylinder Bore, 15 mm Stroke Length, 176 N Maximum Force, Double Acting Cylinder Action, M5 x 0.8 Port, 0.1 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 20 mm in H x 58 mm in W x 94 mm in D Dimensions

Standards

RoHS Compliant

Features

  • Non-rotating accuracy ± 0.1 deg
  • Stroke adjustment range from 0 to 5 mm
  • Auto switch capable

Specifications

Country of Origin:US
Cushion Type:Rubber
Cylinder Action:Double Acting
Cylinder Bore Size:15 mm
Dimensions:20 mm in H x 58 mm in W x 94 mm in D
Maximum Force:176 N
Mounting Type:Direct
Port Size:M5 x 0.8
Pressure Rating:0.1 to 0.7 mpa
Series:CXS
Stroke Length:15 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
15 mm
Brand Name
SMC
Stroke
15 mm
