Actual Product May Vary From Image

D11B UJNT 1-1/4X1-1/4*3/16PHBE LOV

Name: D11B UJNT 1-1/4X1-1/4*3/16PHBE LOV
Brand: Lovejoy
SKU: D11B UJNT 1-1/4X1-1/4*3/16PHBE LOV
Availability: OutOfStock

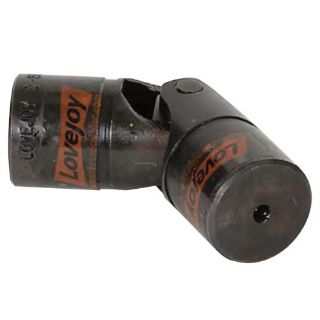

Lovejoy® 68514465677 Type D Finished Bore Pin and Block Universal Joint With (2) 3/16 in Pin Holes, D11B, 1.25 in Dia x 1.38 in D Bore, 1750 rpm Max, Steel

Manufacturer: Lovejoy

Manufacturer part number: 68514465677

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type D Finished Bore Pin and Block

Description

D-type Universal Joints with solid bores incorporate a standard pin and block design and are ideal for applications with angles up to 25 deg and speeds of up to 1750 rpm. Boot retaining grooves are standard. For optimal wear and extended life, lubrication and boots are required. (Boots are available for purchase separately).

Lovejoy® Universal Joint, Type D Finished Bore Pin and Block, D11B Size, 1.25 in Dia x 1.38 in D Bore, 1-3/4 in Diameter Joint, 10680 in-lb Static Torque, 1750 rpm Maximum, 5 in Overall Length, 2-1/2 in Pin Height, 25 deg Maximum Misalignment Angle, Steel, Metallic

Standards

Features

Industry standard
Without keyway and setscrew

Specifications

Bore Size:	1.25 in Dia x 1.38 in D
Country of Origin:	US
Finish:	Metallic
Joint Diameter:	1-3/4 in
Material:	Steel
Maximum Misalignment Angle:	25 deg
Maximum Speed:	1750 rpm
Overall Length:	5 in
Pin Height:	2-1/2 in
Size:	D11B
Torque Rating:	10680 in-lb Static
