D20 INA

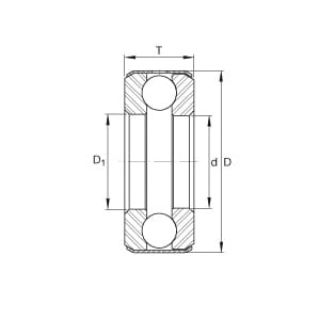

Picture of D20 INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
D20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Description

INA Axial Deep Groove Ball Bearing, Series: D Series, 1-11/16 in Bore Dia, 2.969 in Outside Dia, 1 Rows, 0.813 in Width, Banded Face, Single Thrust Direction, 10300 lb Dynamic/25000 lb Static, Steel Bearing, 2400 rpm Maximum

Features

  • Banded assembly, non-separable
  • Medium cross section
  • Grooved race
  • Speed limit shown is for oil lubrication

Specifications

Bearing Material:Steel
Bore Diameter:1-11/16 in
Face Type:Banded
Load Capacity:10300 lb Dynamic/25000 lb Static
Maximum Speed:2400 rpm
Number of Rows:1
Outside Diameter:2.969 in
Series:D Series
Thrust Direction:Single
Width:0.813 in

Products Specifications

Brand Name
INA USA CORPORATION
Measuring Units
Inch
