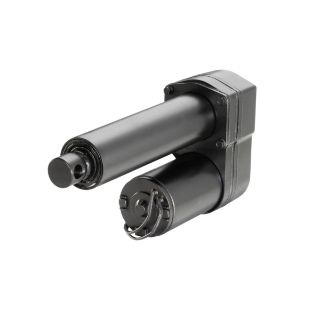

D24-20B5-08 THO

Name: D24-20B5-08 THO
Brand: Thomson Industries
SKU: D24-20B5-08 THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

D24-20B5-08

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Description

The Electrak® 10 actuators incorporate a screw drive system for applications requiring maximum load capacity. A specially designed anti-back driving brake holds tension or compression loads in position when the actuator is not in use. This holding brake activates automatically when the actuator is turned off and will continue to hold the load in position without power consumption until the actuator is started.

Thomson® Electrak® 10 Linear Actuator, 1000 lb Dynamic/3000 lb Static Load, 8 in Maximum Stroke, 0.45 in/s Full Load/0.6 in/sec No Load Maximum, 25 % Duty Cycle, 24 VDC, 0.3 A No Load/7 A Maximum Load, 15.9 in Retracted Length, 3.01 in W x 5.81 in H Dimensions

Application

Mobile-off-Highway, Turf and Garden, Energy Alternatives, Industrial, Ventilation, Process Control Equipment, Health, Fitness, Office, Domestic and Entertainment Equipments

Standards

CE Certified

Features

Robust, strong and reliable
Withstands very harsh environments
Overload clutch for mid and end of stroke protection
Motor with thermal switch
Standard speed and maintenance free
Stainless steel cover tube
-15 to 150 deg F operating temperature
7 in L cable
0 deg standard adapter orientation

Specifications

Amperage Rating:	0.3 A No Load/7 A Maximum Load
Country of Origin:	US
Dimensions:	3.01 in W x 5.81 in H
Duty Cycle:	25 %
Load Capacity:	1000 lb Dynamic/3000 lb Static
Maximum Speed:	0.45 in/s Full Load/0.6 in/sec No Load
Maximum Stroke:	8 in
Retracted Length:	15.9 in
Voltage Rating:	24 VDC
