D42 INA

Name: D42 INA
Brand: INA
SKU: D42 INA
Availability: OutOfStock

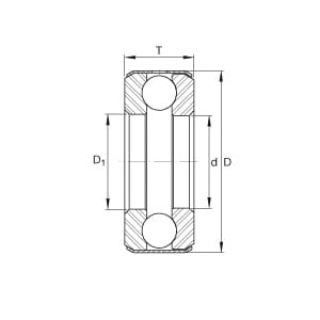

INA D42 Axial Deep Groove Ball Bearing With Retainer, 3-1/2 in Dia Bore, 5.219 in OD, 1 in W, 19200 lb Dynamic/60000 lb Static Load

Manufacturer: INA

Manufacturer part number: D42

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Axial Deep Groove Ball Bearing, Series: D Series, 3-1/2 in Bore Dia, 5.219 in Outside Dia, 1 in Width, Banded Face, Single Thrust Direction, 19200 lb Dynamic/60000 lb Static, 1400 rpm Maximum

Features

Banded assembly, non-separable
Medium cross section
Grooved race
Speed limit shown is for oil lubrication

Specifications

Bore Diameter:	3-1/2 in
Face Type:	Banded
Load Capacity:	19200 lb Dynamic/60000 lb Static
Maximum Speed:	1400 rpm
Outside Diameter:	5.219 in
Series:	D Series
Thrust Direction:	Single
Width:	1 in
