D50200P-BV BLD

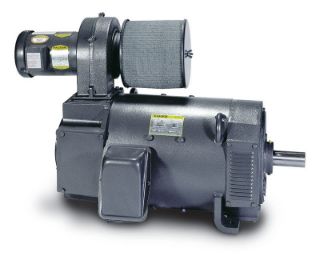

Picture of D50200P-BV BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
D50200P-BV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

DC Motors

Features

200HP,1750/1900RPM,DC,409AT,DPBV,F1,N

Specifications

Ambient Temp:40 °C
Armature Current:311.0 A
Armature Voltage:500
Bearing:6214
Bearing ODE:6213
Commutators:2/40019-3
Country of Origin:US
Duty:Continuous
Enclosure:DPBV
Field Voltage:300
Field Weakened Speed:1,900 rpm
Frame:409AT
Horsepower:200
Insulation Class:F
Mounting:F1
Power Code:C
Service Factor:1
Speed Rating:1,750
Winding:Str. Shunt

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
DPBV
Field Voltage
300
Frame
409AT
Horsepower
200 HP
Speed Rating
1750 RPM
Type
Wound Field DC Motor
Voltage
500
