D5075RS-BV BLD

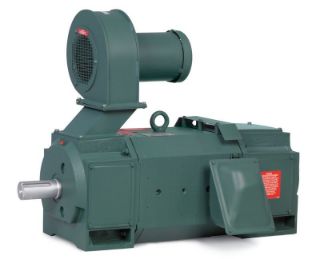

Picture of D5075RS-BV BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
D5075RS-BV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

DC Motors

Features

75HP,1750RPM,DC,2812ATZ,DPG-FV,

Specifications

Ambient Temp:40 °C
Armature Current:124.0 A
Armature Voltage:500
Bearing:65BC03J30X
Bearing ODE:55BC02J30X
Commutators:2/419904-51AC
Country of Origin:US
Duty:Continuous
Enclosure:DPFV
Field Voltage:300
Field Weakened Speed:2,100 rpm
Frame:2812ATZ
Horsepower:75
Insulation Class:F
Mounting:F2
Power Code:C
Service Factor:1
Speed Rating:1,750
Winding:Stab Shunt

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
DPFV
Field Voltage
300
Frame
LC2812ATZ
Horsepower
75 HP
Speed Rating
1750 RPM
Type
Wound Field DC Motor
Voltage
500
