Actual Product May Vary From Image

D8-10 TB

Name: D8-10 TB
Brand: Thomas & Betts
SKU: D8-10 TB
Price: 3.57 USD
Availability: InStock

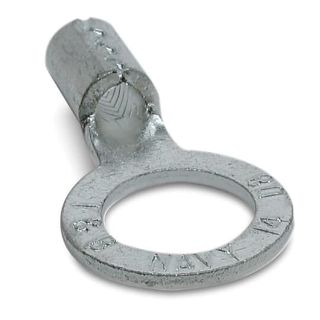

NON-INS - BS RING TERM, 8, #10, MET

Manufacturer: Thomas & Betts

Manufacturer part number: D8-10

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	25
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3.57

Qty:

Product Details

Brand Name

Sta-Kon

Type

Ring Terminal

Description

Non-Insulated - Brazed Seam Ring Terminal For Wire Range 8 Stud Size #10, Metallic

Features

These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

Specifications

Color:	Metallic
Country of Origin:	US
Finish:	Electro -Tin Plated
Flammability Rating:	UL 94 V-0
Insulation Type:	Non-Insulated - Brazed Seam
Material:	Copper
Stock Thickness:	.06
Stud Size:	#10
Temperature Rating:	150?C
Voltage Rating:	600V
Wire Size:	8

Resources

Spec Sheet
