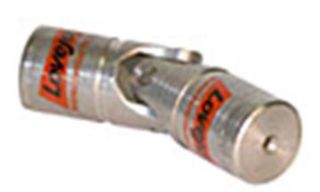

D8B UJNT 14MMX3/4 KW&SS BE LOV

Name: D8B UJNT 14MMX3/4 KW&SS BE LOV
Brand: Lovejoy
SKU: D8B UJNT 14MMX3/4 KW&SS BE LOV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514476184

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Type D Mixed Bore Pin and Block

Description

D-type Universal Joints with solid bores incorporate a standard pin and block design and are ideal for applications with angles up to 25 deg and speeds of up to 1750 rpm. Boot retaining grooves are standard. For optimal wear and extended life, lubrication and boots are required. (Boots are available for purchase separately).

Lovejoy® Universal Joint, Type D Mixed Bore Pin and Block, D8B Size, 14 mm Dia x 1.06 in D, 0.75 in Dia x 1.06 in D Bore, 1-1/4 in Diameter Joint, 5220 in-lb Static Torque, 1750 rpm Maximum, 3-3/4 in Overall Length, 1.88 in Pin Height, 25 deg Maximum Misalignment Angle, Steel, Metallic

Standards

Features

Industry standard

Specifications

Bore Size:	14 mm Dia x 1.06 in D, 0.75 in Dia x 1.06 in D
Country of Origin:	US
Finish:	Metallic
Joint Diameter:	1-1/4 in
Material:	Steel
Maximum Misalignment Angle:	25 deg
Maximum Speed:	1750 rpm
Overall Length:	3-3/4 in
Pin Height:	1.88 in
Size:	D8B
Torque Rating:	5220 in-lb Static
