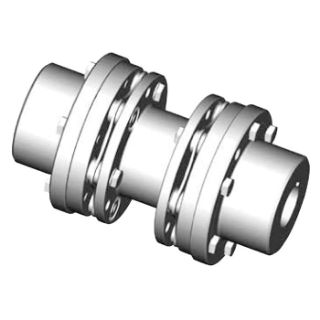

DI110-6 1.7490X50MM H7 BSE4.25 LOV

Name: DI110-6 1.7490X50MM H7 BSE4.25 LOV
Brand: Lovejoy
SKU: DI110-6 1.7490X50MM H7 BSE4.25 LOV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790494528

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Type DI Disc Drop-In Spacer

Description

The DI-type coupling is the standard six bolt coupling with two hubs and a spacer assembly that can be installed or removed without disturbing the equipment and hubs and without removing the disc packs from the spacer assembly. Custom spacer lengths can be specified for special applications. The coupling has two flex planes (one at each disc pack) so it can accommodate parallel misalignment by the angular misalignment in each disc pack. This configuration will also accommodate axial misalignment within the specified limits.

Lovejoy® Industrial Coupling, Type DI Disc Drop-In Spacer, Series: DI-6 Series, 1.749 in, 50 mm Bore, 4.53 in OD, 8.19 in Overall Length, 2.87 in Dia Hub, 1.97 in Length Through Bore, 5100 in-lb Nominal/10200 in-lb Maximum Torque, 7200 rpm Unbalanced/18000 rpm Balanced Maximum, 4-1/4 in Shaft Connection

Standards

Features

Designed to meet the API 610 standard
Unitized disc pack
Infinite life if properly aligned
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions

Specifications

Bore Diameter:	1.749 in, 50 mm
Country of Origin:	US
Hub Size:	2.87 in Dia
Length Through Bore:	1.97 in
Maximum Speed:	7200 rpm Unbalanced/18000 rpm Balanced
Outside Diameter:	4.53 in
Overall Length:	8.19 in
Series:	DI-6 Series
Shaft Connection:	4-1/4 in
Torque Rating:	5100 in-lb Nominal/10200 in-lb Maximum
