DI202-6 JUMBO HUB RSB LOV

Name: DI202-6 JUMBO HUB RSB LOV
Brand: Lovejoy
SKU: DI202-6 JUMBO HUB RSB LOV
Availability: OutOfStock

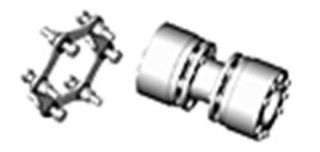

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790492091

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Type DI-6 Jumbo Style Rough Stock Bore

Description

The DI Type coupling is the standard 6 bolt coupling with two hubs and a spacer assembly that can be installed or removed without disturbing the equipment and hubs and without removing the disc packs from the spacer assembly. Custom spacer lengths can be specified for special applications. The coupling has two flex planes (one at each disc pack) so it can accommodate parallel misalignment by the angular misalignment in each disc pack. This configuration will also accommodate axial misalignment within the specified limits.

Lovejoy® Disc Coupling Hub, Type DI-6 Jumbo Style Rough Stock Bore, 202-6 Coupling, 5.38 in Bore, 8.27 in Diameter Flange, 5.67 in Diameter Hub, 3840 rpm Unbalanced/9600 rpm Balanced Maximum, 3.54 in Length Through Bore, AISI 1045 Steel, Metallic

Application

For drop-in spacer center industrial disc couplings

Standards

API 61 | ECCN EAR99

Features

Unitized disc pack
Infinite life if properly aligned
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions
Without setscrew

Specifications

Bore Diameter:	5.38 in
Country of Origin:	US
Coupling Size:	202-6
Finish:	Metallic
Flange Diameter:	8.27 in
Hub Diameter:	5.67 in
Length Through Bore:	3.54 in
Material:	AISI 1045 Steel
Maximum Speed:	3840 rpm Unbalanced/9600 rpm Balanced
