DMNF2-488FIB-3K PAN

Name: DMNF2-488FIB-3K PAN
Brand: Panduit
SKU: DMNF2-488FIB-3K PAN
Availability: OutOfStock

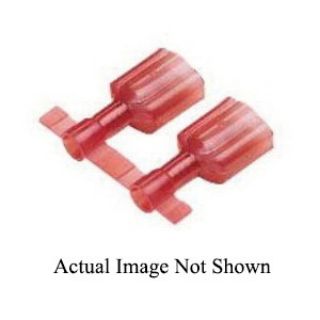

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DMNF2-488FIB-3K

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Funnel Entry

Description

The Panduit® Reel Smart™ system provides the best solution for quality, high volume terminations designed to dramatically reduce set up time and production downtime. This increased efficiency translates into real cost savings throughout the termination process from start to finish.

Panduit®, DMNF2-488FIB-3K, Female Disconnect, Metric, Series: DMNF-FIB, 1.5 to 2.5 sq-mm Conductor, 4.8 x 0.8 mm Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, Specifications: 4 mm Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Blue, TiN Plated, 19.8 mm L x 7.4 mm W x 4.6 mm H Dimensions, Insulated: Fully Insulated

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Butted Seam
Color:	Blue
Conductor Size:	1.5 to 2.5 sq-mm
Country of Origin:	MX
Dimensions:	19.8 mm L x 7.4 mm W x 4.6 mm H
Finish:	Electroplated Tin
Insulated:	Fully Insulated
Material:	Brass
Series:	DMNF-FIB
Specifications:	4 mm Dia Maximum Wire Nylon Insulation
Tab Size:	4.8 x 0.5 mm
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 VAC
