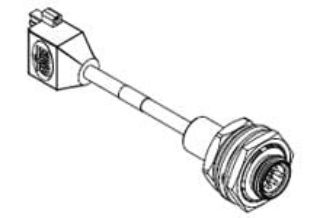

Actual Product May Vary From Image

DND5304-M010 WOO

Name: DND5304-M010 WOO
Brand: Molex/Woodhead
SKU: DND5304-M010 WOO
Availability: OutOfStock

Brad® DeviceNet™ Micro-Change® Mini-Change® DND5304-M010 130039 Double Ended Threaded Receptacle Assembly, Open x Mini-Change® Receptacle Connector, 1 m L Cable, 5 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: DND5304-M010

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Brad®

Type

Double Ended Threaded

Description

Micro-Change® connectors are designed to withstand harsh industrial environments and their superior quality assures a very reliable connection for control elements in automated equipment. These IEC 61076-2-101 compliant connectors allow fast and simple connections to 12 and 18 mm sensors, encoders, switches and other input and output devices in industrial machinery. Brad® complete line of M12 connectivity provides a quick-connect wiring system that eliminates field install cabinets and minimizes field wiring termination errors.

Brad® DeviceNet™ Micro-Change® Mini-Change® Receptacle Assembly, Double Ended Threaded, Series: 130039, Open x Mini-Change® Receptacle Connector, PVC, Thin Cable, 1 m Cable Length, Polyamide Cable, 5 Poles, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Red/White Wire Pin Colors, IEC 61076-2-101 IEC Rating, IP20/IP67

Features

Overmolded open style of DeviceNet™ connector provides for environmental protection and cable integrity strain relief
Variety of form factor, cable type and length options available for maximum flexibility
Without LED indicator

Specifications

Amperage Rating:	4 A
Cable Length:	1 m
Cable Material:	Polyamide
Cable Type:	Thin
Connector Material:	PVC
Connector Type:	Open x Mini-Change® Receptacle
Country of Origin:	MX
IEC Rating:	IEC 61076-2-101
Keyway:	Single
NEMA Rating:	IP20/IP67
Number of Poles:	5
Series:	130039
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Black/Blue/Red/White
