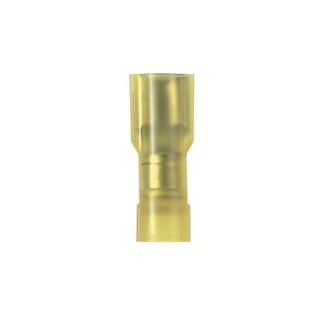

Actual Product May Vary From Image

DNF10-250FI-L PAN

Name: DNF10-250FI-L PAN
Brand: Panduit
SKU: DNF10-250FI-L PAN
Price: 1.49 USD
Availability: InStock

Panduit® DNF10-250FI-L DNF-FI Loose Piece Vibration-Resistant Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Insulation Grip Sleeve Barrel, Brass, Yellow, Fully Insulated

Manufacturer: Panduit

Manufacturer part number: DNF10-250FI-L

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
50	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.49

Qty:

Product Details

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Alternate Supplier #

Fastenal - 0710365

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

Panduit®, DNF10-250FI-L, Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FI, Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Insulation Grip Sleeve Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.22 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Yellow, Tin Plated, 0.95 in L x 0.36 in W x 0.27 in H Dimensions, Insulated: Fully Insulated

Application

For making quick and repeatable interconnections

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Expanded wire entry designed to accommodate wire with a larger insulation thickness
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Funnel Entry/Insulation Grip Sleeve
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.95 in L x 0.36 in W x 0.27 in H
Finish:	Tin Plated
Insulated:	Fully Insulated
Material:	Brass
Series:	DNF-FI
Specifications:	0.22 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 VAC
