DNF10-250FIMB-D PAN

Name: DNF10-250FIMB-D PAN
Brand: Panduit
SKU: DNF10-250FIMB-D PAN
Price: 1.22 USD
Availability: OutOfStock

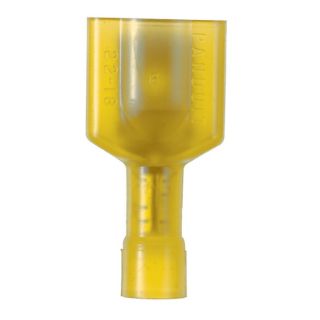

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DNF10-250FIMB-D

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1.22 / EA

This product has a minimum quantity of 500

Description

Brand Name

Panduit®

Type

Fully Insulated Loose Piece Vibration-Resistant

Description

Panduit®, DNF10-250FIMB-D, Male Tab Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FIMB, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Standard Barrel, 600 VAC, Specifications: 7.1 mm L Wire Strip, 0.22 in Dia Maximum Wire Nylon Insulation, 221 deg F, Copper, Yellow, Nickel Plated, 0.96 in L x 0.45 in W x 0.36 in H Dimensions

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
Heat shrink sleeving provides additional level of strain relief for the wire
Heat shrink fully insulated

Specifications

Barrel Type:	Butted Seam/Standard
Color:	Yellow
Conductor Size:	12 to 10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.96 in L x 0.45 in W
Finish:	Nickel Plated
Material:	Copper
Series:	DNF-FIMB
Specifications:	0.22 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Male
Voltage Rating:	600 VAC
