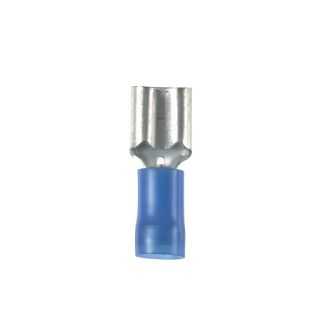

DNF14-110-C PAN

Name: DNF14-110-C PAN
Brand: Panduit
SKU: DNF14-110-C PAN
Price: 1.48 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DNF14-110-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1.48 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit®, DNF14-110-C, Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF, 16 to 14 AWG Conductor, 0.11 to 0.032 in Tab, Funnel Entry/Insulation Grip Sleeve Barrel, Crimp Terminal, 300 VAC, Specifications: 0.162 in Dia Maximum Nylon Insulation, 194 deg F, Brass, Blue, TiN Plated, 0.75 in L x 0.15 in W x 0.08 in H Dimensions, Insulated: Insulated

Application

Making Quick and Repeatable Interconnection Applications

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Funnel Entry/Insulation Grip Sleeve
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.75 in L x 0.15 in W x 0.08 in H
Finish:	TiN Plated
Insulated:	Fully Insulated
Material:	Brass
Series:	DNF
Specifications:	0.162 in Dia Maximum Nylon Insulation
Tab Size:	0.11 in W x 0.032 in THK
Temperature Rating:	194 deg F
Terminal Type:	Crimp
Voltage Rating:	300 VAC
