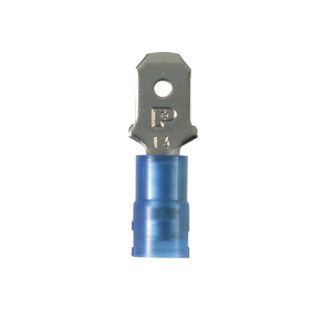

Picture of DNF14-250M-C PAN
Actual Product May Vary From Image

DNF14-250M-C PAN

Panduit® DNF14-250M-C DNF-M Loose Piece Vibration-Resistant Male Tab Disconnect, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Insulation Grip Sleeve/Standard Barrel, Copper, Blue
Manufacturer: Panduit
Manufacturer part number: DNF14-250M-C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1.36

Product Details

Brand Name

Panduit®

Type

Barrel Insulated Loose Piece Vibration-Resistant

Alternate Supplier #

Fastenal - 0726798

Description

Panduit®, DNF14-250M-C, Male Tab Disconnect, Loose Piece Vibration-Resistant, Series: DNF-M, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Insulation Grip Sleeve/Standard Barrel, 600 VAC, Specifications: 7.1 mm L Wire Strip, 0.162 in Dia Maximum Wire Nylon Insulation, 221 deg F, Copper, Blue, Nickel Plated, 0.9 in L x 0.25 in W Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | C22.2 No. 153/LR31212 | RoHS Compliant | UL 310/20H3 File No. E78522/UL94 V-2 Flammability Rated | UL HB Flammability Rated

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
  • Fully insulated design provides protection from electrical shorts
  • Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Premium nylon fully insulated

Specifications

Barrel Type:Insulation Grip Sleeve/Standard
Color:Blue
Conductor Size:16 to 14 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:0.9 in L x 0.25 in W
Finish:Nickel Plated
Material:Copper
Series:DNF-M
Specifications:0.162 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:221 deg F
Terminal Type:Male
Voltage Rating:600 VAC
