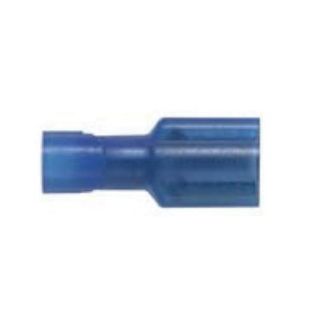

DNF14250FIBX-C PAN

Name: DNF14250FIBX-C PAN
Brand: Panduit
SKU: DNF14250FIBX-C PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DNF14250FIBX-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Expanded Entry

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

Panduit® PAN-TERM® Female Disconnect, Expanded Entry, Series: DNF-FIBX, Copper Stranded Conductor, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 221 deg F, Brass/Nylon, Blue, TiN Plated, 0.93 in L x 0.35 in W x 0.22 in H Dimensions, Fully Insulated

Application

For designed to function as a reliable method of making quick and repeatable interconnections

Standards

UL 310 | CSA Certified

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
UL 94V-2/HB flammability rating
0.24 in Dia maximum insulation wire
9/32 in wire strip length
CT-100A recommended installation tool

Specifications

Barrel Type:	Butted Seam
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Copper Stranded
Dimensions:	0.93 in L x 0.35 in W x 0.22 in H
Finish:	TiN Plated
Insulated:	Fully Insulated
Material:	Brass/Nylon
Series:	DNF-FIBX
Tab Size:	0.25 x 0.032 in
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 VAC
