DNF18-205-C PAN

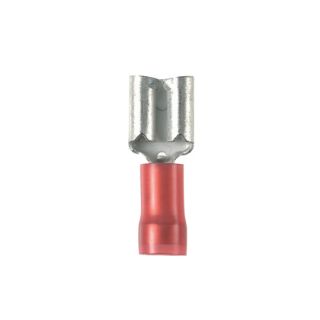

Picture of DNF18-205-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DNF18-205-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.48 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.
Panduit®, DNF18-205-C, Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF, Stranded Copper Conductor, 22 to 18 AWG Conductor, 0.187 to 0.205 in W x 0.032 in THK Tab, Beveled Edge/Funnel Entry/Insulation Grip Sleeve/Serrated Barrel, Crimp Terminal, 300 VAC, Specifications: 9/32 in L Wire Strip, 0.14 in Dia Maximum Wire Nylon Insulation, 194 deg F, Brass, Red, Tin Plated, 0.76 in L x 0.25 in W x 0.12 in H Dimensions, Insulated: Insulated

Application

For making quick and repeatable interconnections

Standards

ARRA Compliant | Buy American Act Compliant | C22.2 No. 153/LR31212 | RoHS Compliant | UL 310/20H3 File No. E78522 | UL HB Flammability Rated | UL94 V-2 Flammability Rated

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Barrel design with larger outside diameter for use with more common hand tools

Specifications

Barrel Type:Beveled Edge/Funnel Entry/Insulation Grip Sleeve/Serrated
Color:Red
Conductor Size:22 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:0.76 in L x 0.25 in W x 0.12 in H
Finish:Tin Plated
Insulated:Barrel Insulated
Material:Brass
Series:DNF
Specifications:0.137 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:0.187 to 0.205 in W x 0.032 in THK
Temperature Rating:194 deg F
Terminal Type:Crimp
Voltage Rating:300 V
