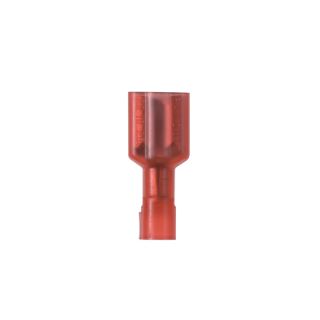

Picture of DNF18-250FIB-C PAN
Actual Product May Vary From Image

DNF18-250FIB-C PAN

Panduit® DNF18-250FIB-C DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Insulated
Manufacturer: Panduit
Manufacturer part number: DNF18-250FIB-C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1.23

Product Details

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Alternate Supplier #

Fastenal - 0711103

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.
Panduit®, DNF18-250FIB-C, Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FIB, Stranded Copper Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.14 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Red, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Insulated

Application

For making quick and repeatable interconnections

Standards

ARRA Compliant | Buy American Act Compliant | C22.2 No. 153/LR31212 | RoHS Compliant | UL 310/20H3 File No. E78522 | UL HB Flammability Rated | UL94 V-2 Flammability Rated

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:Butted Seam/Funnel Entry
Color:Red
Conductor Size:18 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:0.84 in L x 0.35 in W x 0.22 in H
Finish:Tin Plated
Insulated:Fully Insulated
Material:Brass
Series:DNF-FIB
Specifications:0.136 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:221 deg F
Terminal Type:Crimp
Voltage Rating:600 V

Resources
