DNF18-250FIMB-D PAN

Name: DNF18-250FIMB-D PAN
Brand: Panduit
SKU: DNF18-250FIMB-D PAN
Price: 0.79 USD
Availability: OutOfStock

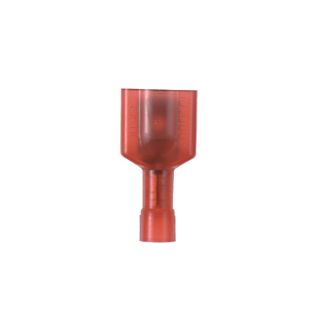

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DNF18-250FIMB-D

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.79 / EA

Description

Brand Name

Panduit®

Type

Barrel Insulated Loose Piece Vibration-Resistant

Description

Panduit®, DNF18-250FIMB-D, Male Tab Disconnect, Fully Insulated Loose Piece Vibration Resistant, Series: DNF-FIMB, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Standard Barrel, 600 VAC, Specifications: 0.136 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Red, Nickel Plated, 0.91 in L x 0.45 in W x 0.34 in H Dimensions

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal barrel serrations assure good wire contact and maximum tensile strength
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Coupler, male and female parts sold separately
Maximum insulation temperature 221 deg F
UL flammability UL 94V-2/HB, maximum insulation temperature 221 deg F (105 deg C)
UL and CSA rated up to 600 VAC per UL 310

Specifications

Barrel Type:	Butted Seam/Standard
Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.91 in L x 0.45 in W
Finish:	Nickel Plated
Material:	Brass
Series:	DNF-FIMB
Specifications:	0.136 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Male
Voltage Rating:	600 VAC
