DNF18-250FIMB-L PAN

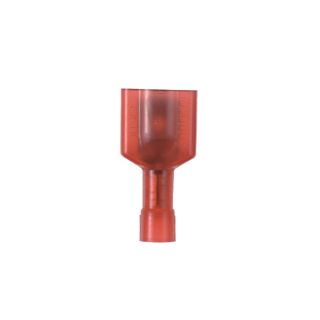

Picture of DNF18-250FIMB-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DNF18-250FIMB-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.49 / EA

Description

Brand Name

Panduit®

Type

Barrel Insulated Loose Piece Vibration-Resistant

Description

Panduit®, DNF18-250FIMB-L, Male Tab Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FIMB, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Standard Barrel, 600 VAC, Specifications: 7.1 mm L Wire Strip, 0.136 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Red, Nickel Plated, 0.91 in L x 0.45 in W x 0.34 in H Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | C22.2 No. 153/LR31212 | RoHS Compliant | UL 310/20H3 File No. E78522/UL94 V-2 Flammability Rated | UL HB Flammability Rated

Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
  • Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Premium nylon fully insulated
  • Disconnects on a reel

Specifications

Barrel Type:Butted Seam/Standard
Color:Red
Conductor Size:22 to 18 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:0.91 in L x 0.45 in W
Finish:Nickel Plated
Material:Brass
Series:DNF-FIMB
Specifications:0.136 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:221 deg F
Terminal Type:Male
Voltage Rating:600 VAC
