DNFR14-206FIB-M PAN

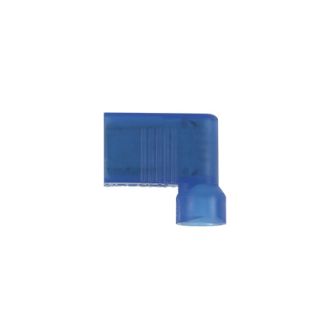

Picture of DNFR14-206FIB-M PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DNFR14-206FIB-M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Right Angle Vibration-Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.
Panduit®, DNFR14-206FIB-M, Female Disconnect, Loose Piece Right Angle Vibration-Resistant, Series: DNFR-FIB, Copper Stranded Conductor, 16 to 14 AWG Conductor, 0.187 to 0.205 x 0.02 in Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.18 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Blue, TiN Plated, 0.58 in L x 0.37 in W x 0.6 in H Dimensions, Insulated: Fully Insulated

Application

For making quick and repeatable interconnections

Standards

ARRA Compliant | Buy American Act Compliant | CSA File No. LR31212/C22.2 File No. 153 | RoHS Compliant | UL 310/20H3 File No. E78522 | UL94 V-2 HB Flammability Rated

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:Butted Seam/Funnel Entry
Color:Blue
Conductor Size:14 AWG
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:0.58 in L x 0.37 in W x 0.6 in H
Finish:Tin Plated
Insulated:Fully Insulated
Material:Brass
Series:DNFR-FIB
Specifications:0.178 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:0.187 to 0.205 in W x 0.02 in THK
Temperature Rating:221 deg F
Terminal Type:Crimp
Voltage Rating:600 V
