DNG18-250FB-L PAN

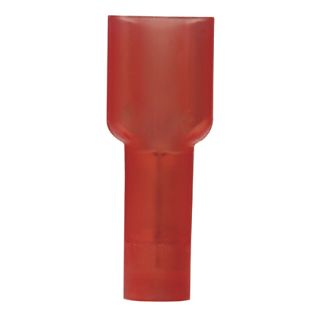

Picture of DNG18-250FB-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DNG18-250FB-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.
Panduit®, DNG18-250FB-L, Female Disconnect, Loose Piece, Series: DNG-FB, Copper Stranded Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Funnel Entry/Metal Insulation Grip Barrel, Double Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.13 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Red, TiN Plated, 0.93 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Insulated

Application

For making quick and repeatable interconnections

Standards

ARRA Compliant | Buy American Act Compliant | CSA File No. LR31212/C22.2 File No. 153 | RoHS Compliant | UL 310/20H3 File No. E78522 | UL94 V-2 HB Flammability Rated | UL Listed

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Flared barrel extension integrated into stamping to provide insulation grip for double crimp requirements
  • Fully insulated design provides protection from electrical shorts
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Mates with DNF-FIMB family

Specifications

Barrel Type:Butted Seam/Flared/Funnel Entry/Internal Serration
Color:Red
Conductor Size:18 AWG
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:0.93 in L x 0.35 in W x 0.22 in H
Finish:Tin Plated
Insulated:Fully Insulated
Material:Brass
Series:DNG-FB
Specifications:0.126 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:221 deg F
Terminal Type:Double Crimp
Voltage Rating:600 V
