DNH14-250FIM-Q PAN

Name: DNH14-250FIM-Q PAN
Brand: Panduit
SKU: DNH14-250FIM-Q PAN
Availability: OutOfStock

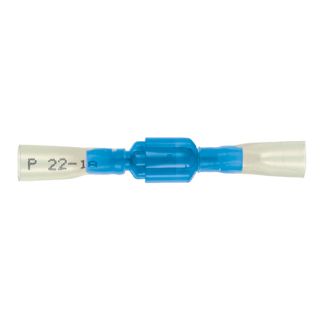

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DNH14-250FIM-Q

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Fully Insulated Loose Piece

Description

Panduit®, DNH14-250FIM-Q, Male Tab Disconnect, Fully Insulated Loose Piece, Series: DNH-FIM, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Sleeve/Standard Barrel, 600 VAC, Specifications: 0.158 in Dia Maximum Wire Heat Shrink Insulation, 5/16 in L Wire Strip, 230 deg F, Brass, Blue, Nickel Plated, 0.9 in L x 0.41 in W x 0.31 in H Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | CSA File No. LR31212/C22.2 File No. 153 | RoHS Compliant | UL 310/20H3 File No. E78522

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
Heat shrink sleeving provides additional level of strain relief for the wire
Minimum continuous operating temperature -65 deg F
Maximum continuous operation temperature 230 deg F
Shrink temperature of 300 deg F (150 deg C)

Specifications

Barrel Type:	Sleeve/Standard
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded
Country of Origin:	US
Dimensions:	0.9 in L x 0.41 in W x 0.31 in H
Finish:	Nickel Plated
Material:	Brass
Series:	DNH-FIM
Specifications:	0.158 in Dia Maximum Heat Shrink Insulation, 300 deg F Shrink, 5/16 in Mounting, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	230 deg F
Terminal Type:	Male
Voltage Rating:	600 VAC
