DNH18-250FIB-Q PAN

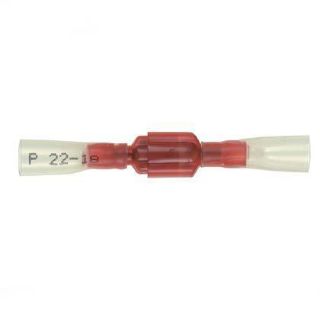

Picture of DNH18-250FIB-Q PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DNH18-250FIB-Q
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Heat Shrink Vibration Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.
Panduit®, DNH18-250FIB-Q, Female Disconnect, Loose Piece Heat Shrink Vibration Resistant, Series: DNH-FIB, Copper/Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry/Standard Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.13 in Dia Maximum Wire Heat Shrink Insulation, 230 deg F, Brass, Red, TiN Coated, 1.44 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Pre-Insulated

Application

Making Quick and Repeatable Interconnection Applications

Standards

ARRA Compliant | BAA Compliant | CSA LR31212/C22.2 No 153 | RoHS Compliant | UL 310/20H3 File No E78522 | UL 94 V-2/HB Flammability Rated | Buy American Act Compliant

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:Butted Seam/Funnel Entry/Standard
Color:Red
Conductor Size:18 AWG
Conductor Type:Copper/Stranded
Country of Origin:US
Dimensions:1.44 in L x 0.35 in W x 0.22 in H
Finish:TiN Coated
Insulated:Fully Insulated
Material:Brass
Series:DNH-FIB
Specifications:0.132 in Dia Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:230 deg F
Terminal Type:Crimp
Voltage Rating:600 VAC
