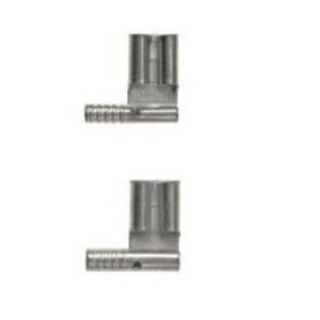

DR14-205B-M PAN

Name: DR14-205B-M PAN
Brand: Panduit
SKU: DR14-205B-M PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DR14-205B-M

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Right Angle

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

Panduit®, DR14-205B-M, Female Disconnect, Right Angle, Series: DR-B, Copper Stranded Conductor, 16 to 14 AWG Conductor, 0.187 to 0.205 x 0.032 in Tab, Beveled Edge/Butted Seam/Serrated Barrel, Crimp Terminal, 2000 VAC, Specifications: 9/32 in L Wire Strip, 302 deg F, Brass, Metallic, TiN Plated, 0.54 in L x 0.25 in W x 0.12 in H Dimensions, Insulated: Non-Insulated

Application

Limited Space Applications

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Barrel of terminal internally beveled to provide quick and easy wire insertion
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Beveled Edge/Butted Seam/Serrated
Color:	Metallic
Conductor Size:	16 to 14 AWG
Conductor Type:	Copper Stranded
Country of Origin:	MX
Dimensions:	0.54 in L x 0.25 in W x 0.12 in H
Finish:	Electroplated Tin
Insulated:	Non-Insulated
Material:	Brass
Series:	DR-B
Specifications:	9/32 in L Wire Strip
Tab Size:	0.187 to 0.205 x 0.032 in
Temperature Rating:	302 deg F
Terminal Type:	Crimp
Voltage Rating:	2000 VAC
