DR15ALTRP2 HWD

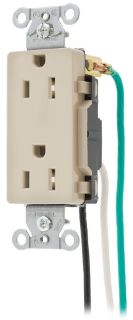

Picture of DR15ALTRP2 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
DR15ALTRP2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Decorator Duplex Standard Tamper Resistant

Description

Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Decorator Duplex Standard Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Stranded Wire Lead Terminal, Nylon, Almond, 3.28 in H x 1.3 in W x 1.07 in D Dimensions

Application

Washdown Areas, Transit Centers, Amusement Parks and Open Air Markets

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 42 | Federal Specification WC596 | NEMA WD1/WD5 | UL 498

Features

  • Aesthetic Style Line® decorator design
  • Smooth face
  • Tamper resistant shutter complies with national electrical code requirements
  • Triple wipe contacts

Specifications

Amperage Rating:15 A
Color:Almond
Country of Origin:CN
Dimensions:3.28 in H x 1.3 in W x 1.07 in D
Grade:Commercial/Industrial/Specification
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Stranded Wire Lead
Voltage Rating:125 VAC
