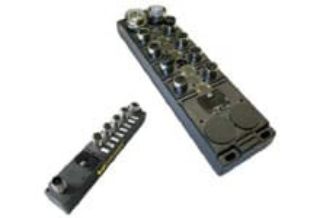

DRL-750 WOO

Name: DRL-750 WOO
Brand: Molex (Woodhead)
SKU: DRL-750 WOO
Price: 523.19 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

DRL-750

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$523.19 / EA

Description

Brand Name

Brad®

Type

Unmanaged

Description

Brad® Direct-Link™ Network Switch, Unmanaged, Series: 112111, 5-Pole Mini-Change® Port, Ethernet Protocol, 4-Pole Ultra-Lock® Connector, 2 W, 24 VDC Supply, NEMA 6/IP67 Enclosure, Threaded Mounting, 176 mm Length, 30 mm Width, 34 mm Height, -40 to 75 deg C, Environmental Conditions: -40 to 85 deg C Storage Temperature

Application

Industrial Automation, Machine Builders, Mobile Equipment, Aerospace and Transportation Application

Standards

CE Certified | EN 61000-4-2 | 61000-4-4 | 61000-4-5 | 61326

Features

IP67 Rated Direct-Link™ harsh duty unmanaged ethernet switches provide customers with a fast, rugged and secure on-machine ethernet connection to reduce
Push to lock technology for fast and secure network connections. also accepts standard threaded M12
Withstands dust, low pressure wash and submersion in water
Slim build size meets small space requirements
Easy mounting using standard machine extrusions
Plug-and-play capabilities, suitable for both the novice and expert network installation
Suitable for extreme temperature applications
Optimized port count to meet customer application requirements
Flexibility for a broad range of applications
5 to 95% humidity
Quick diagnostics visual indication
IEEE 802.3 Ethernet standard
5-ports

Specifications

Connector Type:	4-Pole Ultra-Lock®
Country of Origin:	CA
Enclosure Type:	NEMA 6/IP67
Environmental Conditions:	-40 to 85 deg C Storage Temperature
Height:	34 mm
Length:	176 mm
Mounting Type:	Threaded
Port Type:	5-Pole Mini-Change®
Power Supply:	2 W, 24 VDC
Protocol:	Ethernet
Series:	112111
Temperature Rating:	-40 to 75 deg C
Width:	30 mm
