DRL-DPS-SRM WOO

Name: DRL-DPS-SRM WOO
Brand: Molex/Woodhead
SKU: DRL-DPS-SRM WOO
Availability: OutOfStock

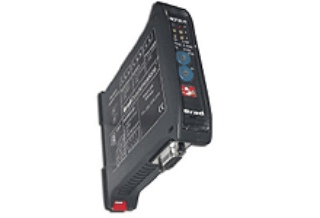

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

DRL-DPS-SRM

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Description

The BradCommunications™ Direct-Link® gateway for Profibus® is built to enable the quick and cost effective connection of any Modbus® device to a Profibus® DP fieldbus. It is well suited for simple network extensions or the integration of legacy devices such as in the machine tool industry. The BradCommunications™ Direct-Link® gateway can act as a Profibus® DP slave on one side and a Modbus® master or slave on the other side.

Brad® BradCommunications™ Direct-Link® PC Network Interface Card, Series: 112026, DA Server/DDE Server/DLL/OPC DA Interface, DPV0 Slave, Serial Free Send/Rec (ASCII/RT, Serial Modbus RTU/ASCII Master, Serial Modbus RTU/ASCII Slave) Protocol, 9.6 kbps to 12 Mbps PROFIBUS, 600 to 57600 bps Serial Data Transfer Rate, 24 VDC, 1.5 W Supply, DIN Rail Mounting, Environmental Conditions: 80% Max Humidity, 0 to 55 deg C Operating Temperature

Application

IO Control, Connecting Serial Devices to PROFIBUS Network, Integration of Legacy Devices Such As in the Machine Tool Industry, Simple Network Extensions, Different Industrial Networks

Standards

CE Certified

Features

Profibus® DP V0 slave to Modbus® serial protocol conversion
Modbus® master or slave RTU/ASCII
Manages up to 20 Modbus® slaves
Easy to use configuration by GSD file
Rotary switches for Profibus® address
Automatic reconfiguration after replacement by the Profibus® master
Serial RS232 or RS485 switch selectable
Full diagnostic through LEDs, dedicated RS232 port and Slave_Diag information
Up to 244 input bytes and 244 output bytes on Profibus®
Up to 20 Modbus® read and write commands with cyclic, change of state or once triggers
Profibus® provides a quick and cost effective connection between controller and field devices
Gateway Profibus® DP slave to serial Modbus® master/slave

Specifications

Country of Origin:	NZ
Data Transfer Rate:	9.6 kbps to 12 Mbps PROFIBUS, 600 to 57600 bps Serial
Environmental Conditions:	80% Max Humidity, 0 to 55 deg C Operating Temperature
Interface:	DA Server/DDE Server/DLL/OPC DA
Mounting Type:	DIN Rail
Power Supply:	24 VDC, 1.5 W
Protocol:	DPV0 Slave, Serial Free Send/Rec (ASCII/RT, Serial Modbus RTU/ASCII Master, Serial Modbus RTU/ASCII Slave)
Series:	112026
