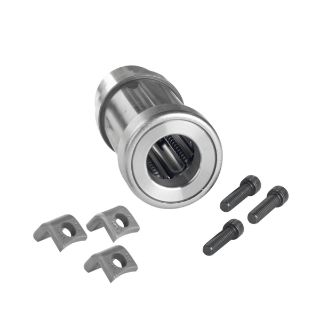

DS20 THO

Thomson® Die set ball bushing bearings are designed to fit the mounting holes of the punch holder in standard dies. When replacing high-friction, plain bearings in standard dies, the result is less machine downtime and increased efficiency. With steady state speeds up to 10 ft/s, the die set bearing will provide faster cycle times with improvements in production rates realized immediately. Matched precision ground 60 Case® LinearRace® allows for a close fit-up between the shaft and the LinearRace® shafting and bearing, providing critical die alignment. When normal machine service requires bearing replacement, the die set bearing can be removed by simply unbolting the toe clamps.

Thomson® Ball Bushing® Die Set Bearing, Series: Precision, 1-1/4 in Shaft Dia, 2.31 in Outside Dia, 1.61 in Center Line to Base, 4.86 in W, Closed Closure, 520 lb Dynamic, Steel Bearing, 500 deg F
