Actual Product May Vary From Image

DSH-015 GLH

Name: DSH-015 GLH
SKU: DSH-015 GLH
Price: 0.20 USD
Availability: InStock

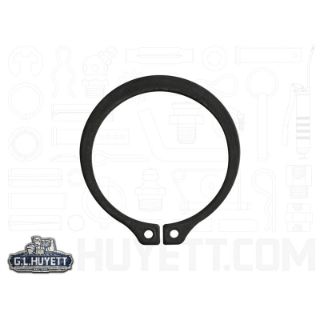

G.L.HUYETT™ DSH-015 Standard Duty Stamped Style External Snap Ring, 15 mm Dia Shaft, Carbon Spring Steel, Phosphate

Manufacturer part number: DSH-015

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
137	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.20

Qty:

Product Details

Brand Name

G.L.HUYETT™

Type

Standard Duty Stamped Style

Description

Once installed in the groove of a shaft, the portion of the ring protruding from the groove (also called a shoulder) holds an assembly in place.

G.L.HUYETT™ External Snap Ring, Standard Duty Stamped Style, Measurement System: Metric, 15 mm Shaft Diameter, Carbon Spring Steel, Phosphate, Fits Groove Diameter: 14.3 mm, 1 mm Thickness, 2.4 kN Tensile Strength, HR30N 63-69.5 Hardness, Material Grade: DIN 471

Standards

RoHS Compliant | PROP65: Warning: This product can potentially expose you to chemicals including lead, nickel and chromium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Country of Origin:	US
Finish:	Phosphate
Fits Groove Diameter:	14.3 mm
Hardness:	HR30N 63-69.5
Material:	Carbon Spring Steel
Material Grade:	DIN 471
Measurement System:	Metric
Shaft Diameter:	15 mm
Tensile Strength:	2.4 kN
Thickness:	1 mm
