DT661F7.5S SHD

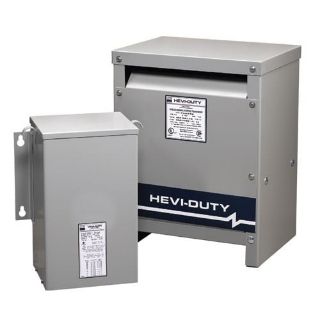

Picture of DT661F7.5S SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
DT661F7.5S
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,197.62 / EA

Description

Type

Drive Isolation Transformers: 7.5-440 kVA, Three Phase

Description

Drive Isolation Transformer, 7.5 kVA, Drive Horse Power 5, 460 Delta Primary, 230Y/133 Secondary, 60 HZ , cULus Listed: E7014, UL 506, CSA C22.2No.66, UL Listed E25872, UL1561

Application

SCR Variable Speed Drives

Standards

cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561

Features

Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC.

Specifications

Country of Origin:US
Enclosure:Nema 3R with weather shield
Frequency Rating:60 HZ
Height:17 IN
KVA Rating:7.5
Length:10 IN
NEMA Frame Size:NEMA 3R
Number of Phases:3
Primary Voltage:460 Delta
Secondary Voltage:230Y/133
Width:20 IN

Resources

Spec SheetWarranty

Products Specifications

Brand Name
SolaHD
KVA Rating
7.5
Phase
3
