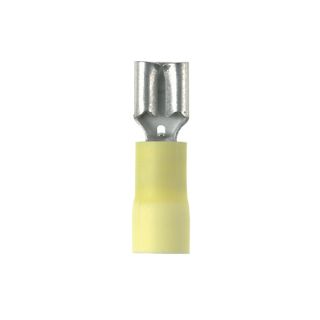

DV10-250-L PAN

Name: DV10-250-L PAN
Brand: Panduit
SKU: DV10-250-L PAN
Price: 1.59 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DV10-250-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1.59 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

Panduit®, DV10-250-L, Female Disconnect, Loose Piece Vibration-Resistant, Series: DV Series, Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.23 in Dia Maximum Wire Vinyl Insulation, 221 deg F, Brass, Yellow, Tin Plated, 1.03 in L x 0.3 in W x 0.13 in H Dimensions, Insulated: Insulated

Application

For making quick and repeatable interconnections

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Funnel Entry/Sleeved
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	1.03 in L x 0.3 in W x 0.13 in H
Finish:	Tin Plated
Insulated:	Insulated
Material:	Brass
Series:	DV Series
Specifications:	0.229 in Dia Vinyl Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 V
